You are here: Home Technical Articles V.I.N. Data Decoding Your V.I.N. Tag - 1967
‹ Back to Technical Index
Decoding Your V.I.N. Tag - 1967

THE FIRST ROW (THE VIN)
The first three digits identify
the model in the series:
Series Code
F-100 2WD F10
F-100 4WD F11
F-250 2WD F25
F-250 4WD F26
F-350 2WD F35

The fourth digit identifies the engine:
Engine Code
240 cid, 6-cyl. A
300 cid, 6-cyl. (LD) B
300 cid, 6-cyl. (HD) B
352 cid, 8-cyl. Y
240 cid, 6-cyl. *1
300 cid, 6-cyl. *2
352 cid, 8-cyl. *8

*Low compression

See Engine Specifications chart below

The fifth digit identifies the assembly plant:
Assembly Plant Code
Ontario, CAN C
Dallas, TX D
Mawah, NJ E
Lorain, OH H
Kansas City K
Michigan Truck L
Norfolk, VA N
Twin Cities, MN P
San Jose, CA R
Allen Park, MI (Pilot plant) S
Louisville, KY U
The remaining six digits are the consecutive unit numbers:
Aug. 1966 -  A00,000 thru A13,999
Sep. 1966 -  A14,000 thru A27,999
Oct. 1966 -  A28,000 thru A41,999
Nov. 1966 -  A42,000 thru A55,999
Dec. 1966 -  A56,000 thru A69,999
Jan. 1967 -  A70,000 thru A83,999
Feb. 1967 -  A84,000 thru A97,999
Mar. 1967 -  A98,000 thru B11,999
Apr. 1967 -  B12,000 thru B25,999
May 1967 -  B26,000 thru B39,999
Jun. 1967 -  B40,000 thru B53,999
Jul. 1967 -  B54,000 thru B67,999
Aug. 1967 -  B68,000 thru B81,999

CLICK HERE to view actual production figures.

NOTE 1: The consecutive numbers for trucks were assigned just like Ford cars in the period, IE each assembly plant started with the same sequential number. Thus, the first truck in Kansas City production in 1967 would be assigned A00,000, as the first truck assigned to San Jose would also be A00,000. The unique serial number identifier would be the plant code.

NOTE 2: While researching these VIN pages, there have been many conflicting sets of numbers discovered. The numbers listed above are those listed in the 'Catalog of Ford Truck ID Numbers 1946-1972'. However, the Oct. 1972 issue of Ford's technical bulletin 'Shop Tips' lists the consecutive numbers for 1967 as A00,000 thru B49,999. The 1975 Ford Master Parts Catalog shows A00,001 thru B82,000 (starting one unit earlier and ending one unit later). In addition, reportedly the figures in the shop manuals are off some because they were printed at the beginning of the production year run and therefore cannot reflect actual production schedules. I've also heard from several truck owners who report higher unit numbers than listed here...so the research will continue.

THE SECOND ROW
The W.B. (Wheelbase) code indicates the wheelbase in inches:
 115" is a short wheelbase truck
 131" is a long wheelbase truck		 The Exterior color code indicates the paint color:

Color

 Code * Specification
Number
Raven Black A M30J-1724-A
Frost Turquoise (Lt. Aqua) B M30J-1734-A
Pure White C M30J-1525-A
Peacock Blue (Lt. Blue) F M30J-1638-A
Chrome Yellow G M30J-1526-A
Rangoon Red J M30J-1515-A
Holly Green (Dk. Green) L M30J-1237-A
Wimbledon White M M30J-1619-A
Lunar Green (Med. Green) U M30J-2097-A
Pebble Beige 6 M30J-1631-A
Harbor Blue 7 M30J-2098-A
Springtime Yellow 8 M30J-1955-A
Prime 9 -

* Gray rating plate designates non-acrylic enamel. Black rating plate designates acrylic enamel with a specification number prefix M32J.

The Model code indicates the model type and the gross vehicle weight in lbs.
Model GVW
F100 5,000
F101 4,200
F102 5,000
F103 4,500
F110 (4x4) 5,600
F111 (4x4) 4,900
F112  (4x4) 5,600
F250 7,500
F251 4,800
F252 7,500
F253 6,000
F254 6,900
Model GVW
F255 6,000
F256 6,900
F260 (4x4) 6,800
F261 (4x4) 4,900
F262 (4x4) 7,700
F263 (4x4) 6,100
F264 (4x4) 7,700
F350 10,000
F351 8,000
F352 8,000
F353 6,600

The Body code: The first one or two digits identifies the interior trim and the last two digits indicates the type of cab.
NOTE: Back-of -cab equipment (pickup box, flatbed, racks) was not included on '67-'69 VIN tags.

BODY STYLE

  CODE
Conventional Cab 81
Cowl and chassis 84
Cowl and windshield 85

INTERIOR TRIM CODES
Code Seat Trim
2 Standard cab bench seat - Medium blue crush vinyl and medium blue bar pattern vinyl
3 Standard cab bench seat - Medium green crush vinyl and medium green bar pattern vinyl
4 Standard cab bench seat - Medium beige crush vinyl and medium beige bar pattern vinyl
5 Standard cab bench seat - Red crush vinyl and red bar pattern vinyl
6 Standard cab bench seat - Black all vinyl
B Custom Cab bench seat - Medium blue petticrush vinyl and medium blue leeds pattern woven plastic
C Custom Cab bench seat - Medium green petticrush vinyl and medium green leeds pattern woven plastic
D Custom Cab bench seat - Medium beige petticrush vinyl and medium beige leeds pattern woven plastic
E Custom Cab bench seat - Red petticrush vinyl and red leeds pattern woven plastic
F Ranger vinyl bench seat - Med. blue barcelona and dk. blue crinkle vinyl
G Ranger vinyl bench seat - Med. green barcelona and dk. green crinkle vinyl
H Ranger vinyl bench seat - Lt. parchment barcelona and pastel parchment crinkle vinyl
I Ranger vinyl bench seat - Red barcelona and dk. red crinkle vinyl
K Standard cab with custom cushion - Med. Blue Woven Plastic and Crush Vinyl
L Standard cab with custom cushion - Med. Green Woven Plastic and Crush Vinyl
M Standard cab with custom cushion - Med. Beige Woven Plastic and Crush Vinyl
N Standard cab with custom cushion - Red Woven Plastic and Crush Vinyl
O Ranger vinyl bucket seats - Dk. Blue Rosette and Crinkle Vinyl
P Ranger vinyl bucket seats - Dk. Green Rosette and Crinkle Vinyl
R Ranger vinyl bucket seats - Dk. Red Rosette and Crinkle Vinyl
S Custom Cab vinyl bucket seats - Dk. Blue Rosette and Crinkle Vinyl
T Custom Cab vinyl bucket seats - Dk. Green Rosette and Crinkle Vinyl
U Custom Cab vinyl bucket seats - Pastel Parchment Rosette and Crush Vinyl
V Custom Cab vinyl bucket seats - Red Rosette and Crush Vinyl
W Standard Cab vinyl bucket seats - Dk. Blue Rosette and Crush Vinyl
X Standard Cab vinyl bucket seats - Dk. Green Rosette and Crush Vinyl
Y Standard Cab vinyl bucket seats - Pastel Parchment Rosette and Crush Vinyl
Z Standard Cab vinyl bucket seats - Dk. Red Rosette and Crush Vinyl

Source: 1964-1972 Ford Truck Master Parts Catalog

  The Transmission code indicates the transmission installed in the vehicle

TYPE CODE
4-speed New Process (NP-435) A
3-speed overdrive (T-85) B
3-speed Ford Light Duty C
3-speed Warner Medium Duty T89C, E, F D
3-speed Warner T87E, G E
4-speed Syn. Warner (T18) F
Cruise-O-Matic (automatic 3-spd.) G

The Rear Axle code indicates the ratio of the rear axle installed in the vehicle
REAR AXLE CODES
TYPE RATIO &
CAPACITY		 VENDOR MODEL Code
Locking 3.25 (3.3M) Ford (WFE) A1
Locking 3.70 (3.3M) Ford (WFE) A2
Locking 3.00 (3.05M) Ford (WDF-M) A7
Locking 3.54 (3.3M) Dana 44, 44.3 A8
Locking 3.54 (3.3M) Dana 60.2, 60.3 A9
Locking 3.50 (3.05M) Ford (WDF-L) B1
Locking 4.11 (3.05M) Ford (WDF-J) B2
Locking 4.57 (3.05M) Ford (WDF-K) B3
Locking 4.10 (5.2M) Dana 60 B4
Locking 4.56 (5.2M) Dana 60 B5
Locking 4.88 (5.2M) Dana 60 B6
Traction Lock (3.3M) Ford (WFE) B9
Locking 3.31 (3.3M) Dana 44, Dana 44.3 C1
Locking 3.73 (3.3M) Dana 44, Dana 44.3 C2
Locking 4.09 (3.3M) Dana 44, Dana 44.3 C4
Locking 4.10 (3.3M) Dana 60.2, 60.3 C5
Locking 3.54 (5.2M) Dana 60 C7
Locking 3.73 (5.2M) Dana 60 C8
Locking 4.88 (7.4M) Dana 70 D2
Locking 3.73 (7.4M) Dana 70 D6
Locking 4.10 (7.4M) Dana 70 D7
Locking 4.56 (7.4M) Dana 70 D8
Locking 4.10 (3.6M) Dana 60.3 E5
Locking 3.54 (3.6M) Dana 60.3 E9
REAR AXLE CODES
TYPE RATIO &
CAPACITY		 VENDOR MODEL Code

-

 3.50 (2.3M) Ford (WCC-M) 01

-

 4.00 (2.3M) Ford (WCC-N) 02
- 4.11 (3.3M) Ford (WDM-L -V -Z -AB) 05
- 4.57 (3.3M) Ford (WEW-B) 06
- 3.00 (3.05M) Ford 07
- 3.50 (3.3M) Ford (WDM-J -W -T) 08
- 3.70 (3.3M) Ford (WDM-K -U) 09
- 3.25 (3.05M) Ford 10
- 3.50 (3.05M) Ford 11
- 4.11 (3.05) Ford (WCR-M) 12
- 4.57 (3.05M) Ford (WCR-N) 13
- 3.25 (3.3M) Ford (WDM-H -S) 17
- 4.88 (7.4M) Dana 70 22
- 5.13 (7.4M) Dana 70 23
- 4.10 (5.2M) Dana 60 24
- 4.56 (5.2M) Dana 60 25
- 4.83 (5.2M) Dana 60 26
- 4.10 (7.4M) Dana 70 27
- 4.56 (7.4M) Dana 70 28
- 5.87 (7.4M) Dana 70 29
- 3.73 (7.4M) Dana 70 36
- 3.54 (5.2M) Dana 60 37
- 3.73 (5.2M) Dana 60 38

SOURCE: 1964-1972 Ford Truck Master Parts
Catalog (1975 Final Edition)

FRONT AXLE CODES
TYPE RATIO &
CAPACITY		 VENDOR MODEL Code
4WD - F100 3.73 (3.0M)
3.54 (3.0M)
4.09 (3.0M)		 Dana 44-7F * K
4WD - F100
  Free Running		 3.73 (3.0M)
3.54 (3.0M)
4.09 (3.0M)		 Dana 44-7F
4WD - F250 4.55 (3.5M) Dana 44-6HDF
4WD - F250 4.55 (3.0M) Dana 44F
4WD - F250
  Free Running		 4.55 (3.5M) Dana 44-6HDF
4WD - F250
  Free Running		 4.55 (3.0M) Dana 44F
* Code K includes both F100 & F250 units with 3M or 3.5M frt. axles and regular or free-running hubs. Determine type of unit, axle size and type hubs before ordering parts.

  SOURCE: 1964-1972 Ford Truck Master Parts Catalog
  (1975 Final Edition)


THE THIRD ROW
The MAX. G.V.W. LBS. code indicates the maximum gross vehicle weight in pounds
The CERT. NET. H.P. code indicates the certified net horsepower at specified rpm.

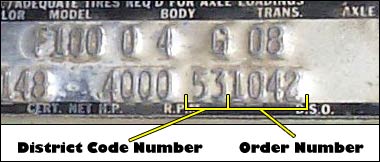

The D.S.O. code:
Identifies the district which ordered the vehicle. If the vehicle is built on a D.S.O (Domestic Special Order), F.S.O. (Foreign Special Order) or L.S.O. (Limited Production Option), the complete order (invoice) number will also be reflected under the DSO space including the District Code Number.
(CLICK HERE to see an example of a 1969 Ford truck order form, with the invoice number which would have been included.)

District Code
Boston 11
New York 13
Newark 15
Philadelphia 16
Washington 17
Atlanta 21
Charlotte 22
Jacksonville 24
Richmond 25
Cincinnati 27
Louisville 28
Cleveland 32
Detroit 33
Indianapolis 34
Lansing 35
Buffalo 37
Pittsburgh 38
Chicago 41
Fargo 42
Milwaukee 43
Twin Cities 44
Davenport 45
District Code
Denver 51
Des Moines 52
Kansas City 53
Omaha 54
St. Louis 55
Dallas 61
Houston 62
Memphis 63
New Orleans 64
Oklahoma City 65
Los Angeles 71
San Jose 72
Salt Lake City 73
Seattle 74
Phoenix 75
Ford of Canada 81
Government 83
Home Office Reserve 84
American Red Cross 85
Transportation 89
Export 90's
x x

1967 Ford Truck Engine Specifications
Engine Code No. Cyl. CID Horsepower Comp. Ratio Carb
A 6 240 150 9.2:1 1-bbl
B 6 300 170 8.0:1 1-bbl
Y 8 352 208 8.9:1 2-bbl
1 * 6 240 - - 1-bbl
2 * 6 300 - - 1-bbl
8 * 8 352

* Low Compression

Sources:

 - Standard Catalog of Ford Trucks 1905-2002
  - Cars & Parts Magazine's Ford Truck ID Numbers 1946-1972
  - 1967 Ford Truck Shop manual - Vol. 1
  - 1965-1972 Ford Truck Master Parts Catalog - 1975 Final Edition
